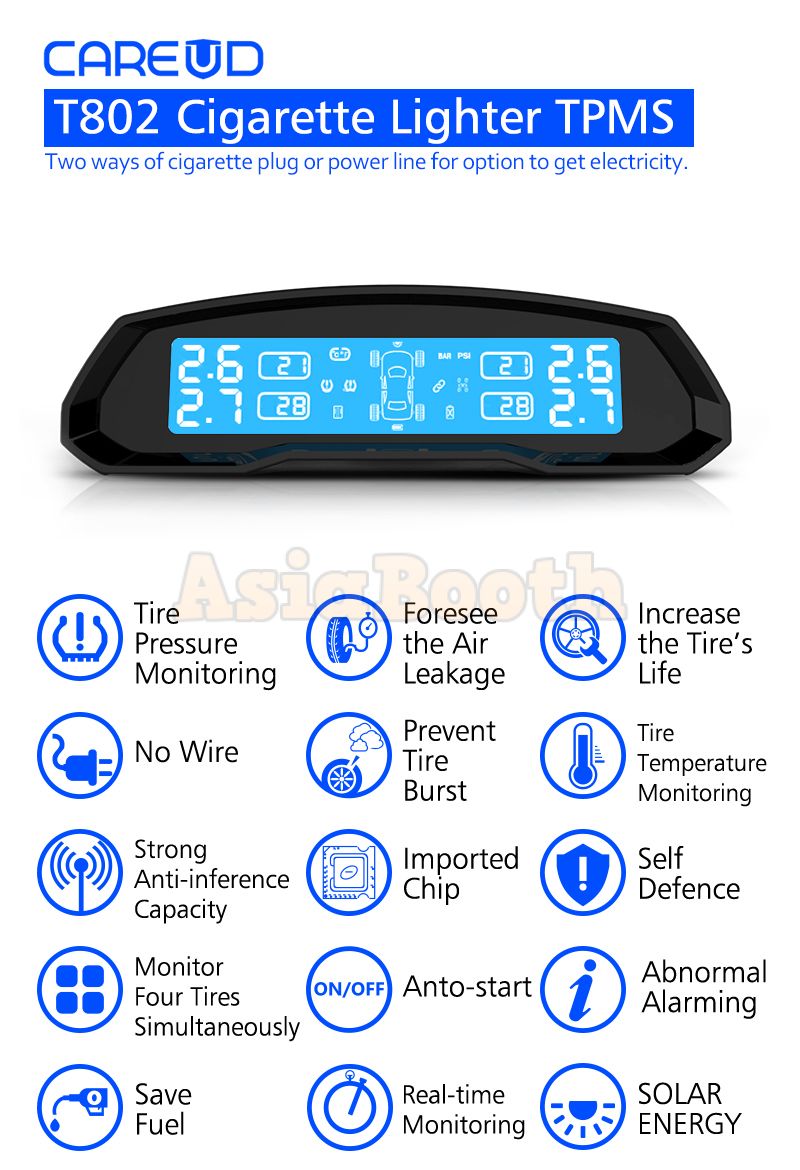

CAREUD T802 Universal TPMS Tire Pressure Monitor For Car – Solar Panel

Description

CAREUD T802 Universal TPMS Tire Pressure Monitor For Car – Solar Panel

A tire-pressure monitoring system (TPMS) is an electronic system designed to monitor the air pressure inside the pneumatic tires on various types of vehicles. TPMS report real-time tire-pressure information to the driver of the vehicle, either via a gauge, a pictogram display, or a simple low-pressure warning light. TPMS can be divided into two different types – direct (dTPMS) and indirect (iTPMS). TPMS are provided both at an OEM (factory) level as well as an aftermarket solution. The target of a TPMS is avoiding traffic accidents, poor fuel economy, and increased tire wear due to under-inflated tires through early recognition of a hazardous state of the tires.

Features:

• Each tire is installed with a high sensitivity sensor transmitter, the data of real-time tire pressure and temperature are able to be transmitted to the display wirelessly.
• With audio-visual alarm prompt function, enables your to quickly know what has happened, such as tire air leakage, too high tire pressure, abnormal tire temperature.

Function descripiton:

• Solar power.
• With LCD display and 4 Internal sensor,equipted with holder to adjust angle and easy to installation
• Monitor the tempreature and pressure with high degree accuracy, display for 4 tires all at once.
• Save gas,forsee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
• RF wireless technology,auto-alarm when tire pressure and temperature is abnormal.
• With two pressure unit”PSI,BAR ” and two temperature unit”C ,F for option.
• Support tire position exchange function.
• Sensor protection grade:IP5K4K.

Display Parameter:

• Working Temperature: (-20C- +85C)
• Storage Temperature: (-40C- +125C)
• Input Voltage: DC8V-24V
• Transmitting Frequency: 433.92MHz
• Size( L*W*H )mm: 80*38*12mm
• Weight: 39g

Internal Sensor parameters:

• Operating temperature: (- 40 C ~ + 105 C)
• Storage temperature: (- 40 C~ + 120 C)
• Pressure range: 0 ~ 116psi (0 ~ 8bar)
• Pressure accuracy: ± 1.5PSI (± 0.1bar)
• Temperature accuracy: ± 3 C
• Transmitting power: <10dbm @ 50Ω
• Transmission frequency: 433.92MHz
• Battery life: >5 years
• Dimensions: ( L * W * H) mm: 69 * 32 * 15mm
• Weight: 29g

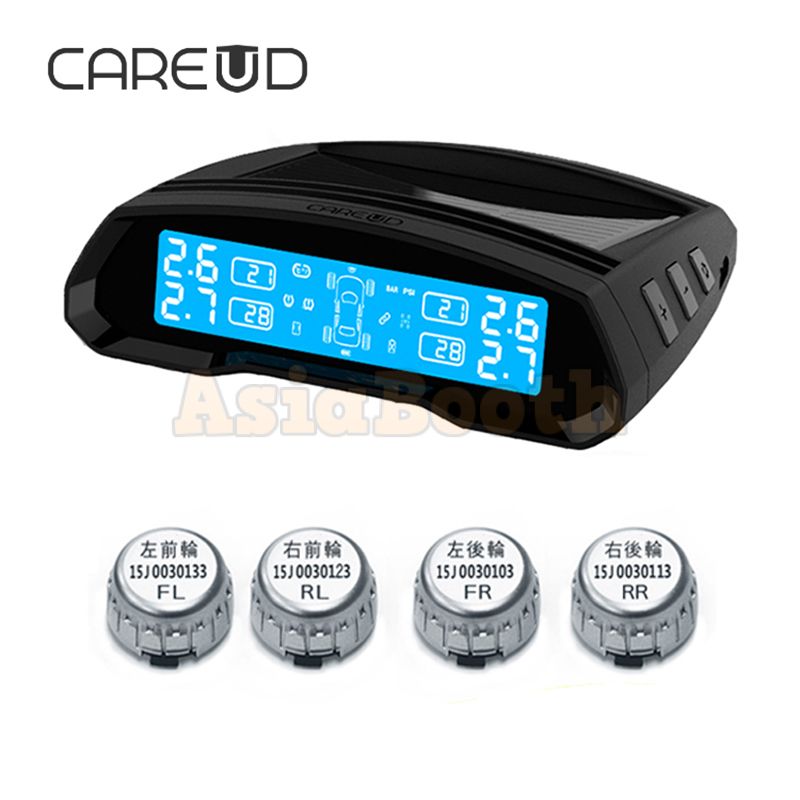

External Sensor parameters:

• Operating temperature: (- 40 C ~ + 105 C)
• Storage temperature: (- 40 C ~ + 120 C)
• Pressure range: 0 ~ 116psi (0 ~ 8bar)
• Pressure accuracy: ± 1.5PSI (± 0.1bar)
• Temperature accuracy: ± 3 C
• Transmitting power: <10dbm @ 50Ω
• Transmission frequency: 433.92MHz
• Battery life: > 1-3 Year
• Dimensions: Height: 13mm, Diameter: 18mm
• Weight: 6.5g



Learn about TPMS by click this link What is TPMS?
