Description

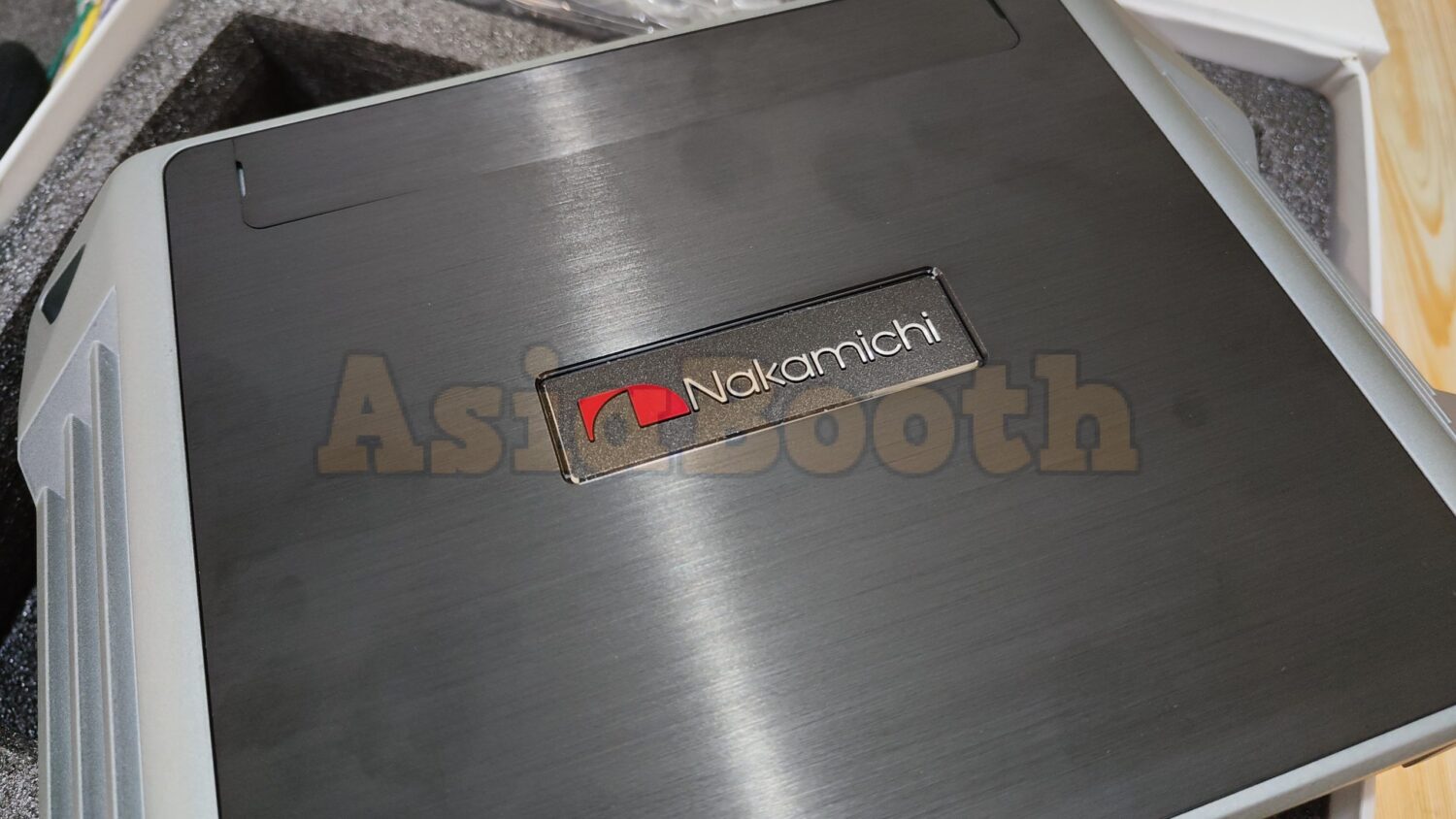

NAKAMICHI NDST550A Car Hi-Res Audio Digital Signal Processor Amplifier 12 Ch.
Nakamichi JAPAN is introducing its latest Digital Signal Processor to their NDST lineup with the NDST500A Hi-Res DSP with built-in amplifier. The NDST500A has been designed with 12 channels to allow for a wide variety of aftermarket sound integrations as well as time correction and equalizer tools to fine tune the acoustics within the vehicle.
The NDST500A is designed from the ground up to be Hi-Res capable, while carrying on features from the NDS series of DSPs which include ease of installation with OEM or factory systems with a selection of customized OE fit cables, Nakamichi head unit, or any other compatible brands of aftermarket head units.
The NDST500A also comes with a built-in amplifier providing 10 channels of output power (RMS 2CHx80W, 4CHx40W, 4CHx25W @4Ω) for installations without requiring an external amplifier, just add on a Nakamichi active subwoofer and you are good to go.
The included Nakamichi remote control with large control knob can be installed cleanly on the vehicle’s dashboard for easy volume and bass adjustments and source selection. Music can also be streamed using the NDST500A’s Bluetooth connection, bypassing the head unit altogether.
Product Data
Dynamic Range(RCA Input) | ≥100dB |
S/N(RCA Input) | ≥90dB |
THD | ≤0.05% |
Frequency Response | 20Hz~40KHz |
Input Impedance | High Level Input:240Ω |
Low level Output Impedeance | 51Ω |
Signal Input Range | RCA: 7.5Vpp; High Level: 26Vpp |
Signal Output Range | RCA: 8Vpp; |
Amplifier Power | PEAK: 4CH×50W+4CH×80W+2CH×160W, Bridging 1×300W RMS: 4CH×25W+4CH×40W+2CH×80W |
Power | DC9V-16V |
REM Input | High Level Input Signal:H1+/H1-or ACC control cable |
REM Output | +12V Start up Voltage Output |
Standby Power | ≤0.1W |
Gross Weight | Approx. 2.08kg |
Product Dimension(L×H×W) | 255×175×47mm |
Technical Sheet
Input Type | 6(8) Channel high level,2 Channel Low Level,External digital Bluetooth,Optical coaxial |
Output Type | 12 Channels low level,4CH×50W+4CH×80W+2CH×160W,Bridging 1×300W |
Output Gain | Gain range:Mute,-59.9dB~0.0dB |
Output Signal EQ | 31 band Equalizer Engine, 1.Frequency Range:20Hz~20KHz,1Hz Accuracy 2.Q value(Slope):0.404~28.85 3.Gain:-12.0dB~+12.0dB,0.1dB Accuracy |
Output Signal Crossover | Each output is equipped with multi-order high and low pass indepance filters. 1.Filtering types:Link-Rill,Butter-W, Bessel 2.Filtering frequency division point:20Hz~20kHz,Resolution 1Hz 3.Filter slope(Slope) setting:6dB/Oct to48dB/Oct and OFF |
Output Phase and Time Alignment | Each output channel can be adjusted for phase and delay,parameter range : phase:in-phase or reverse-phase(0°/180°); Delay: 0.000 to 20.000 ms, 0 to 692 cm,0 to 273 inch. |
Presets | Save 6 presets into the device. |
