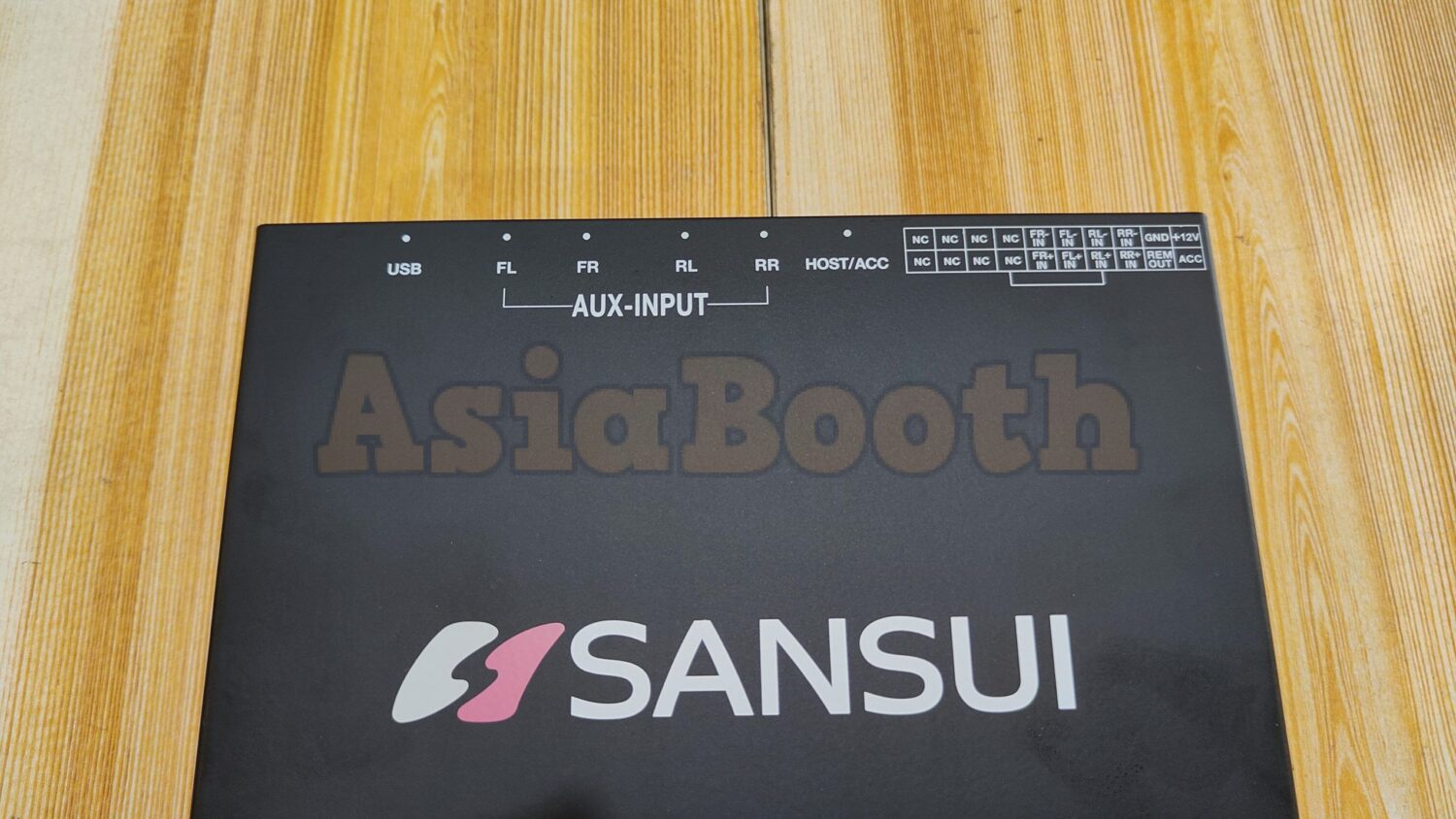

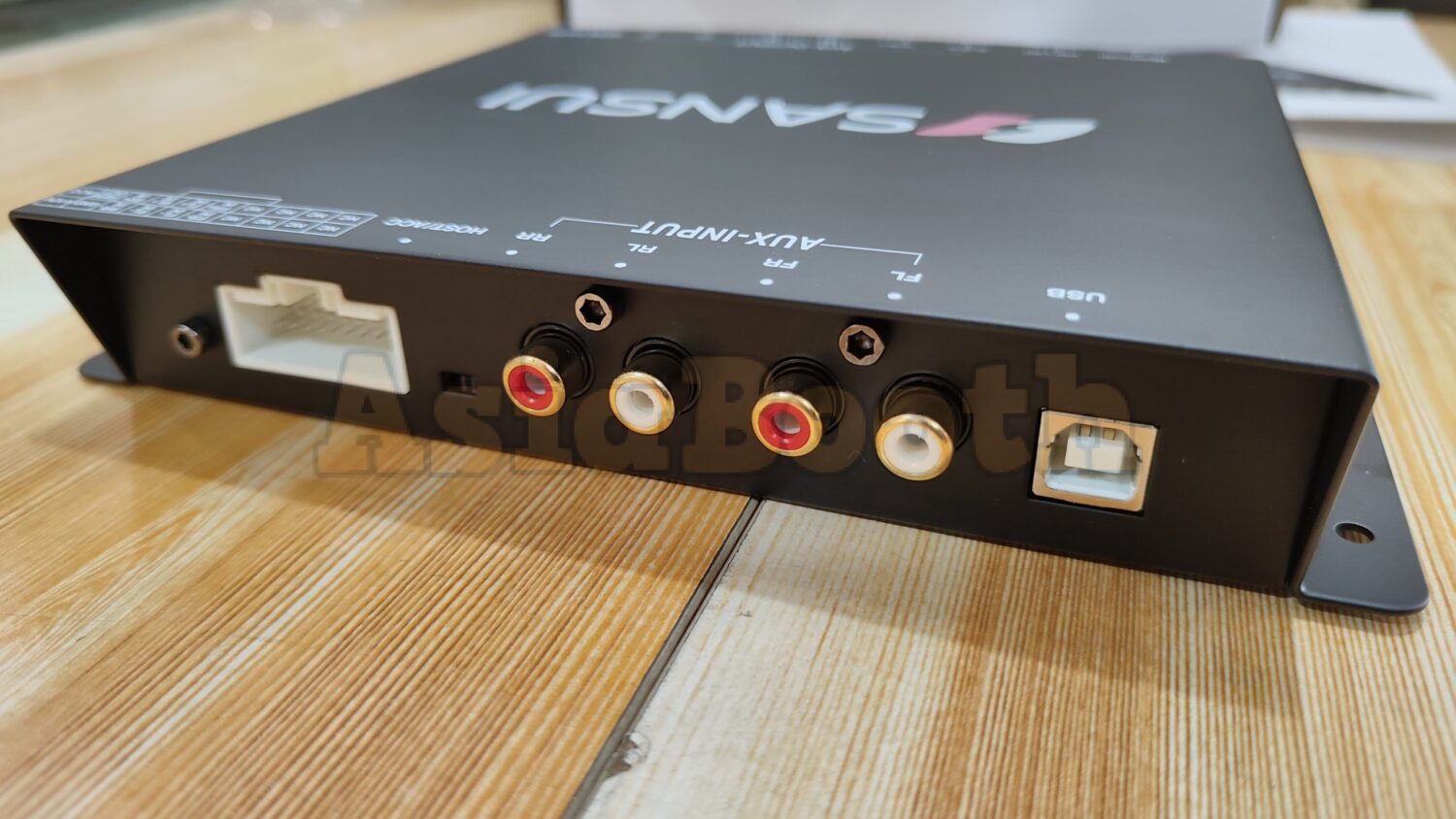

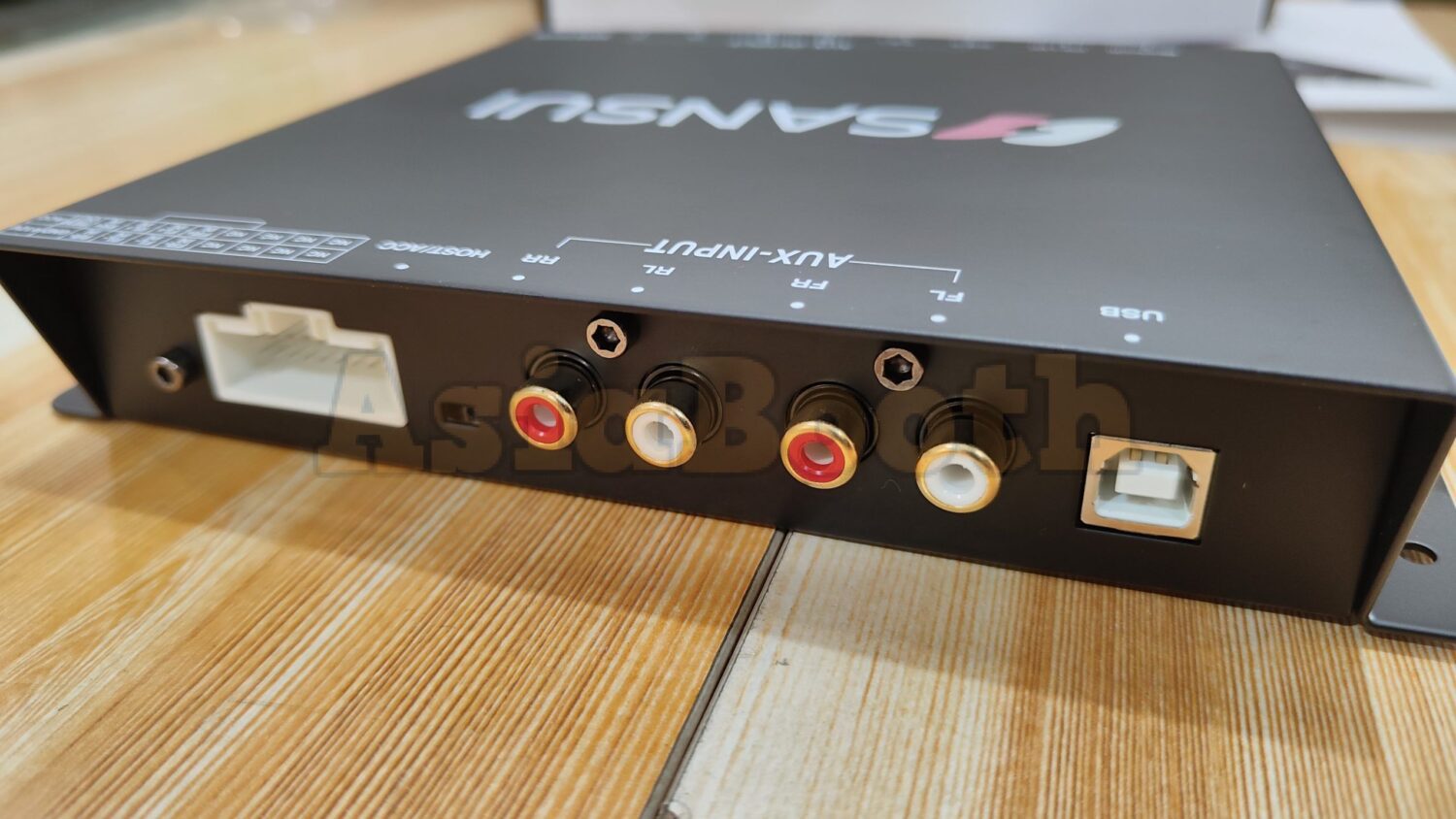

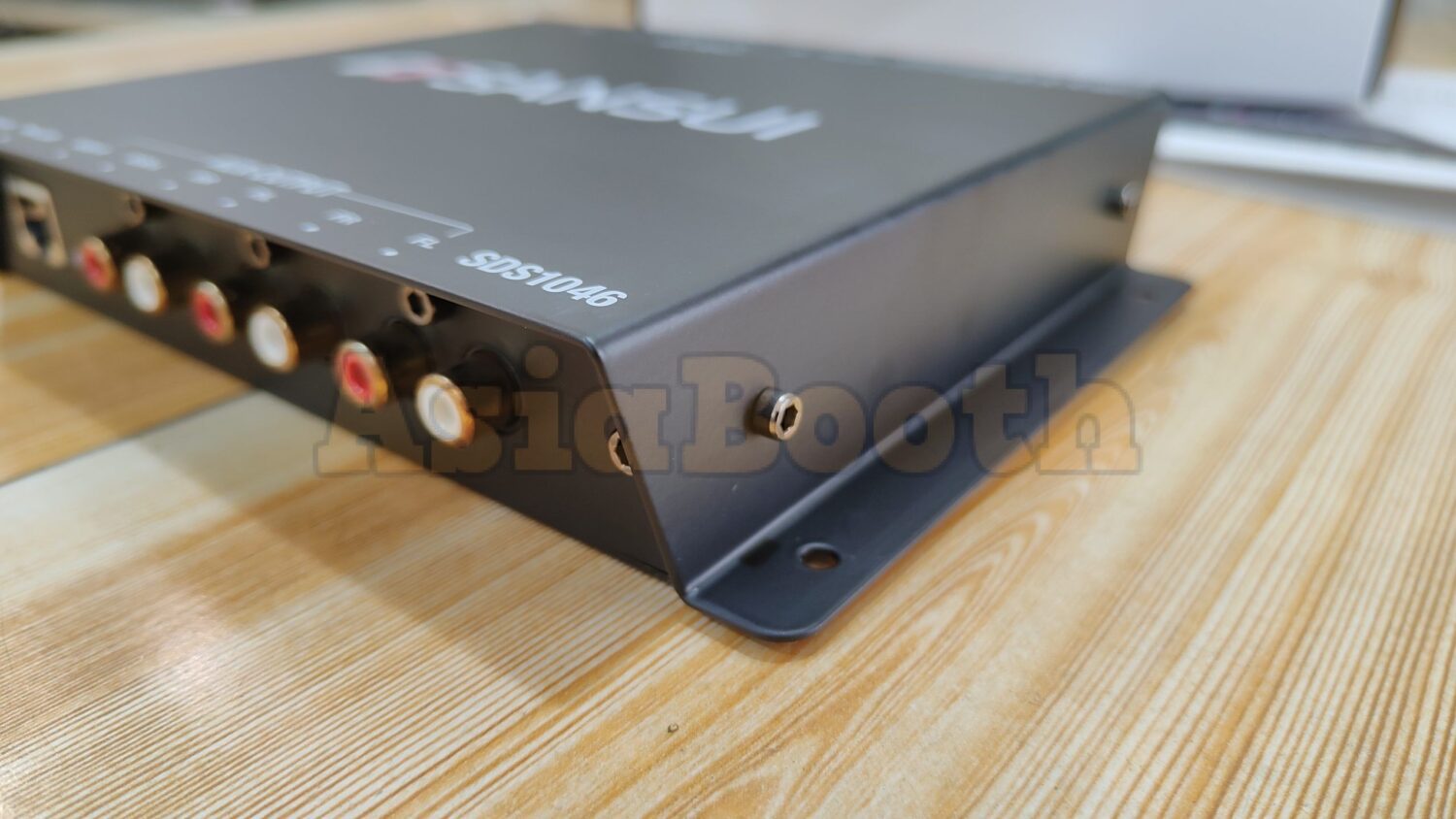

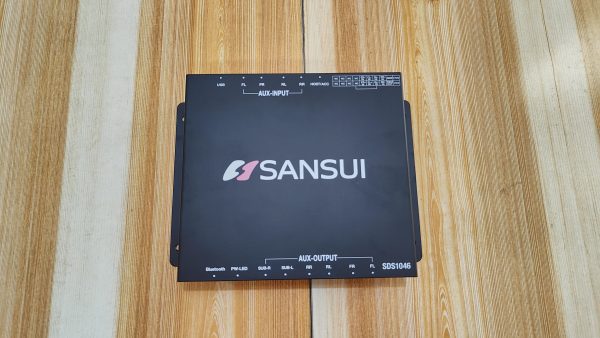

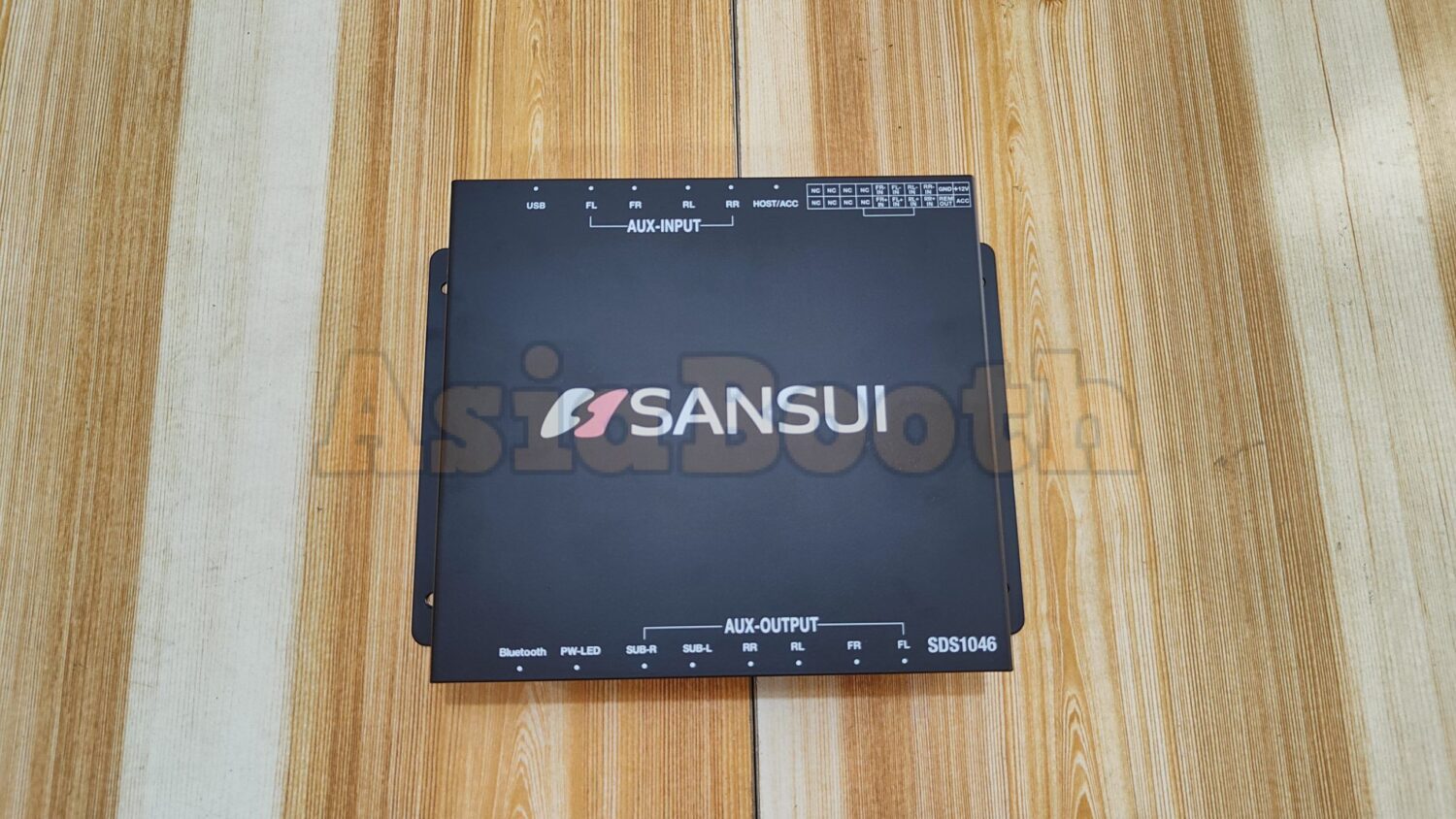

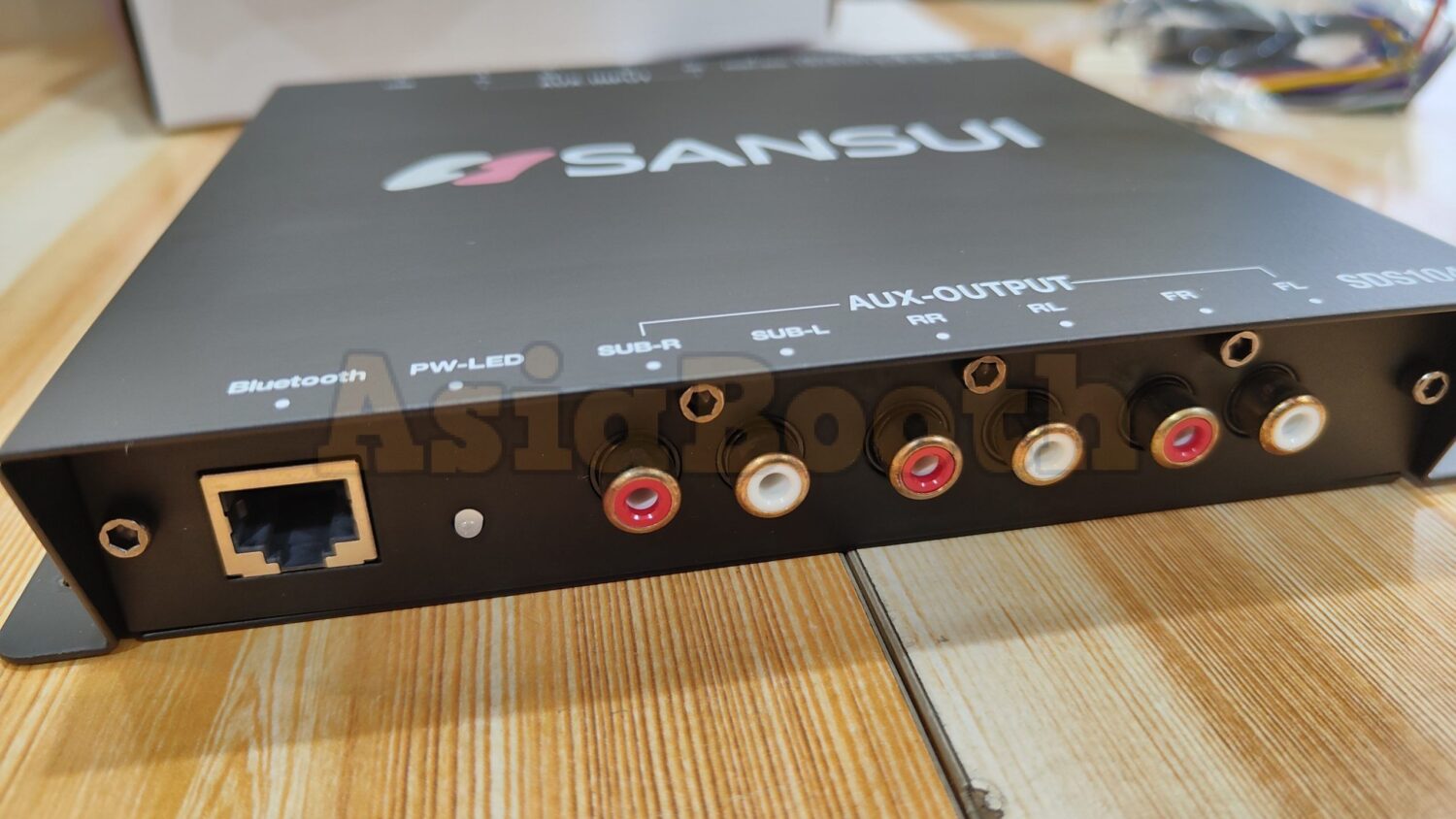

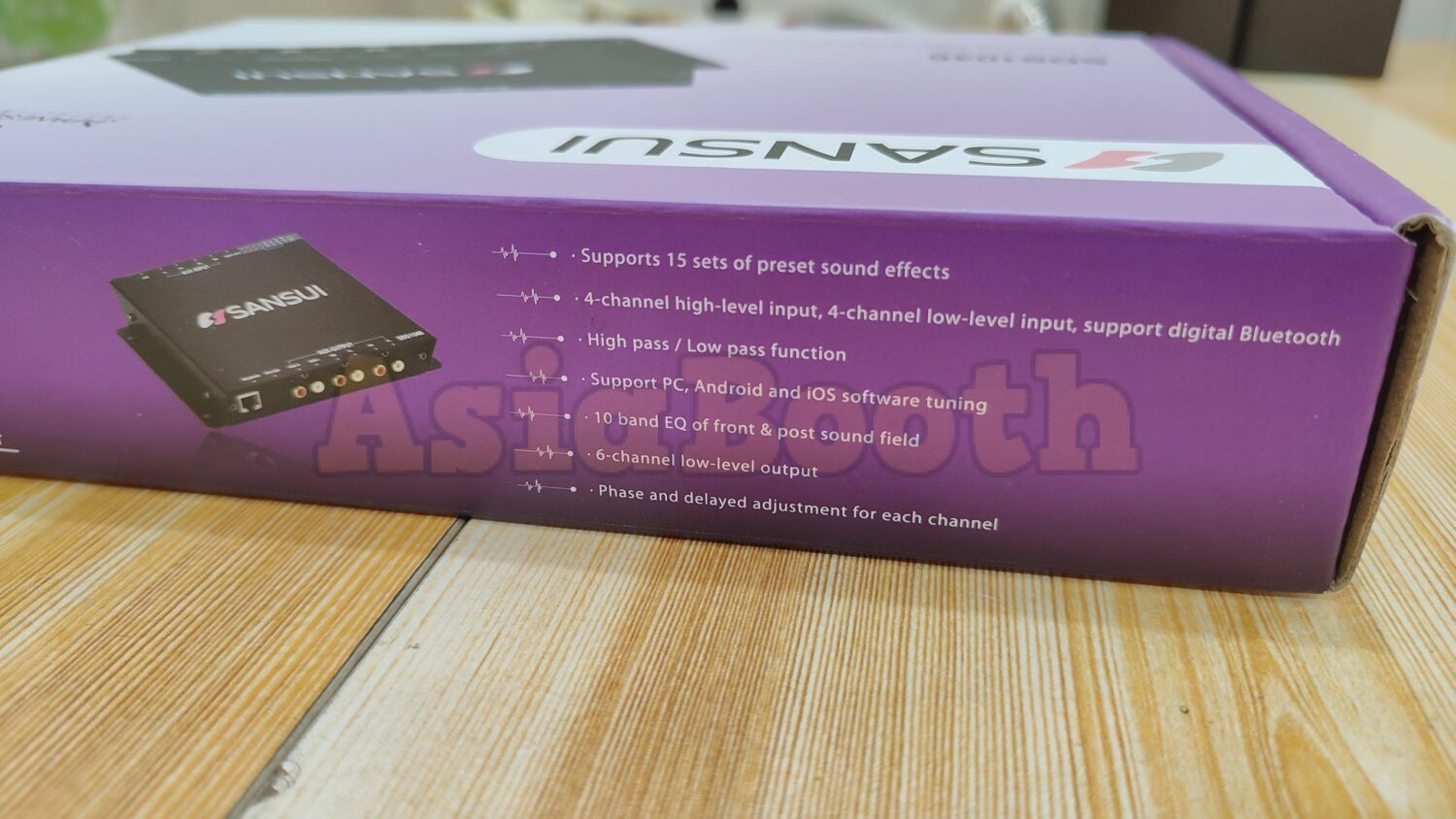

SANSUI SDS-1046 Digital Signal Processor 6 Ch DSP 10 EQ




SANSUI SDS-1046 Digital Signal Processor 6 Ch DSP 10 EQ

Many well-known car audio brands are extended from home audio. SANSUI Japan is the three largest Japanese audio brand with Pioneer and Kenwood. With 75 years of development, SANSUI Japan audio has spread all over the world and has won numerous audios. Enthusiast’s heart. In 2009, SANSUI Japan Audio entered the field of car audio development, and launched a “black hole” series of products, so that many people who like SANSUI Audio can not only listen to the moving melody at home but also enjoy it at any time, anywhere. To the fun that music brings. Recently, with the popularity of DSP products, SANSUI Japan has also adapted to the market and developed this SDS1046 audio processor, which brings convenience to low-end and entry-level modified car owners.



  • Dynamic Range(RCA Input): ≥100dB
  • S/N (RCA Input): ≥90dB
  • Distortion(THD): ≤0.05%
  • Frequency Response: 20Hz~20KHz
  • Input Impedance: High level 330 Ω | Low Level 12k Ω
  • Low-Level Output Impedance: 100 Ω
  • Signal Input & Output Range: RCA: 5.5 Vpp, High level:26 Vpp, RCA Out 5.5 Vpp
  • Working Temperature:-20~70℃
  • Power: DC9V~15V
  • REM Input: High-Level Input Signal: FL+/FL- or ACC control cable
  • REM Output: +12V Start up Voltage Output(0.1A)
  • Standby Power: ≤0.1W
  • Net Weight: Approx. 0.9Kg

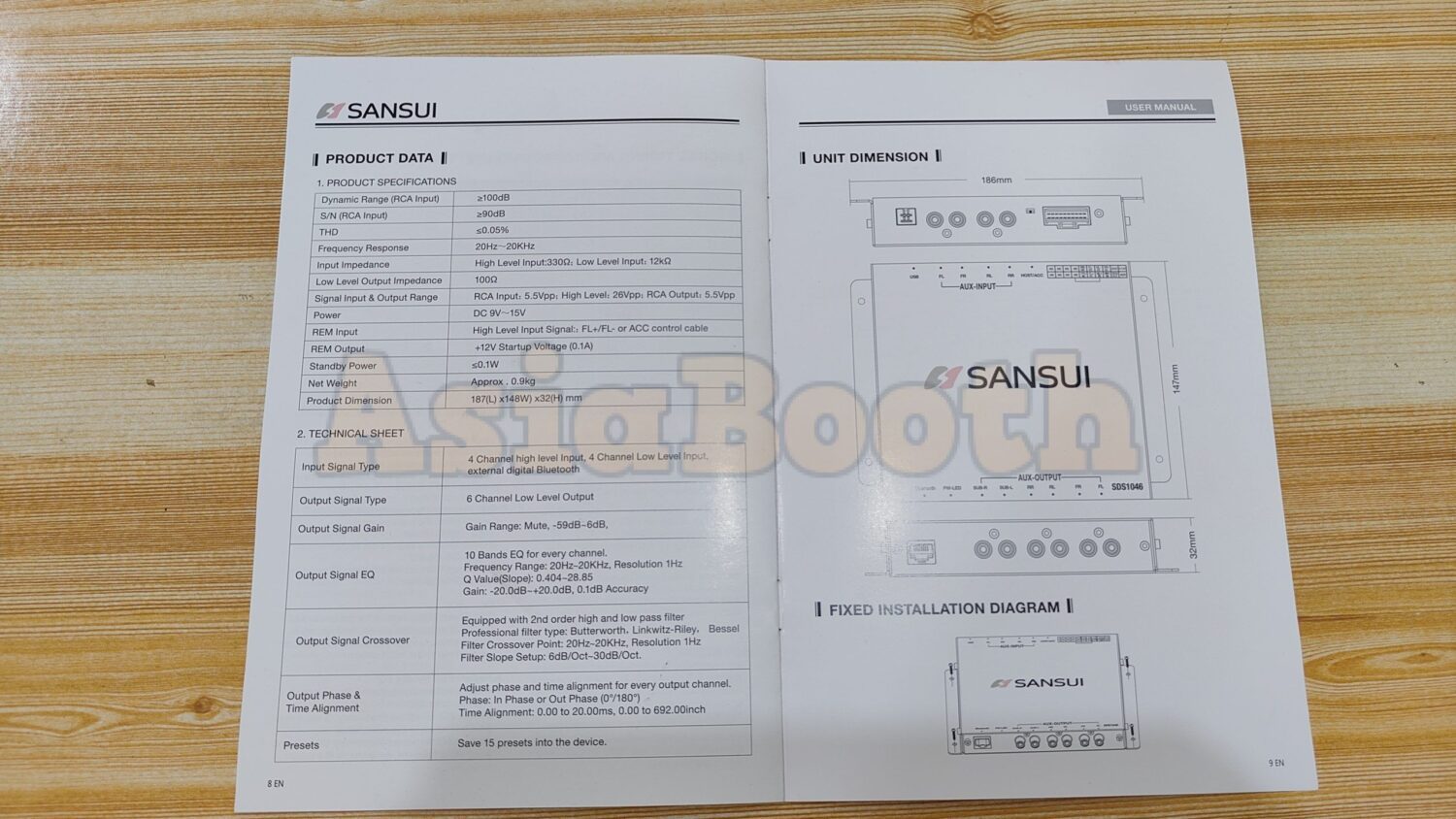

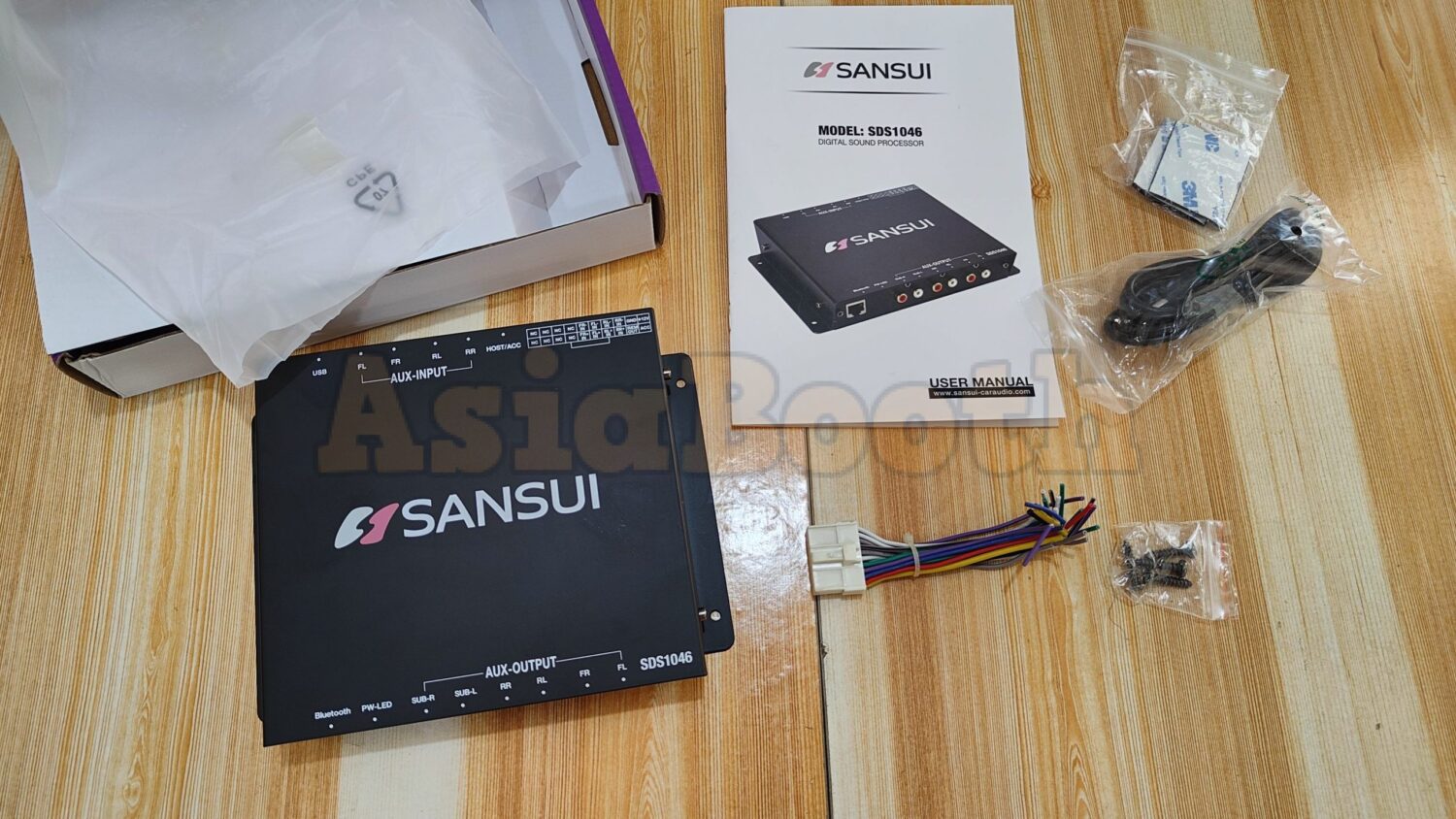

Download: User Manual
